Airport_equipment

This container cart is designed to transport the specialized container types LD1 and LD3 helping the transport organization within the airports. It is equipped with brakes which activate when the cart has stopped and the draw-bar is unhooked.

TECHNICAL DATA

Loading capacity, kg.	1800
Loading height, mm.	508+10
Length incl. draw-bar, mm.	3580
Width, mm.	1630
Height, mm.	560
Weight, kg.	490
Radius of the turn, m.	1.6
Distance between the fastening mechanisms, mm.	1575

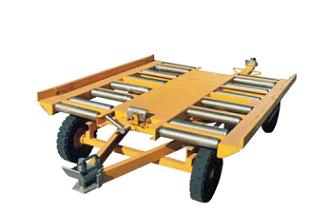

CONTAINER CART KK - 2

This container cart is designed to transport the specialized container types LD3 and LD8 helping the transport organization within the airports. Equipped with brakes activated when the cart has stopped and the draw-bar is unhooked.

TECHNICAL DATA

Loading capacity, kg.	2500
Loading height, mm.	508+10
Length incl. draw-bar, mm.	4370
Width, mm.	1740
Height, mm.	560
Weight, kg.	680
Radius of the turn, m.	2.5

DOUBLE CONTAINER CART KKD - 2.5

This container cart is designed to transport the specialized container types LD1, LD2, LD3 and LD8 within airports. Equipped with brakes activated when the cart has stopped and the draw-bar is unhooked.

TECHNICAL DATA

Loading capacity, kg.	2500
Loading height, mm.	508+10
Length incl. draw-bar, mm.	5060
Width, mm.	1885
Height, mm.	560
Weight, kg.	850
Radius of the turn, m.	3

LUGGAGE TRAILERS

SMALL LUGGAGE TRAILER RMB - 1.5

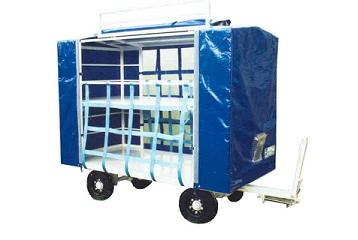

This trailer is designed for the transport of loose traveler's luggage and various types of packages within the area of the airports. It can be equipped (as shown on the pictures) with canvas to protect the luggage in case of rain or snow.

TECHNICAL DATA

Loading capacity, kg.	1500
Loading height, mm.	508+10
Length incl. draw-bar, mm.	3800
Width, mm.	1200
Height with the railings, mm.	1360
Weight, kg.	470
Radius of the turn, m.	1.6

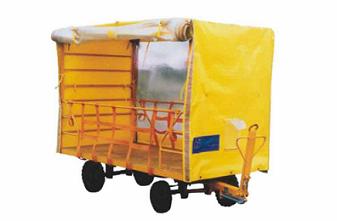

SMALL LUGGAGE TRAILER RMB - 2

This trailer is designed for the transport of loose traveler's luggage and various types of packages within the area of the airports.

TECHNICAL DATA

Loading capacity, kg.	2000
Loading height, mm.	520-10
Length incl. draw-bar, mm.	3750
Lenght of the platform, mm.	2450
Width of the platform, mm.	1400
Height with the railings, mm.	1320
Weight, kg.	350
Radius of the turn, m.	2.5

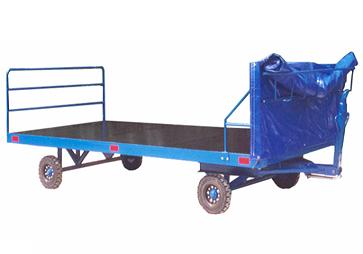

PLATFORM LUGGAGE CART KPB - 4

This trailer is designed for the transport of loose traveler's luggage and various types of packages within the area of the airports.

TECHNICAL DATA

Loading capacity, kg.	4000
Loading height, mm.	650+10
Length incl. draw-bar, mm.	5530
Width, mm.	2000
Height with the railings, mm.	1145
Weight, kg.	850
Radius of the turn, m.	3

MANUAL LUGGAGE CART KPB - 200

Designed for the manual transportation of luggage - suitcases, bags, packs on airports, train and bus stations.

TECHNICAL DATA

Loading capacity, kg.	200
Length, mm.	1000
Width, mm.	650
Height, mm.	1000
Loading height, mm.	270
Lenght of luggage area, mm.	680
Front wheels' diameter, mm.	125
Back wheels' diameter, mm.	200
Weght, kg.	25(30)
Parking place, mm.	340

ULD's Storage Racks

The storage racks are designed to temporary store containers at the airports.

Last updated on: 06.02.2009
